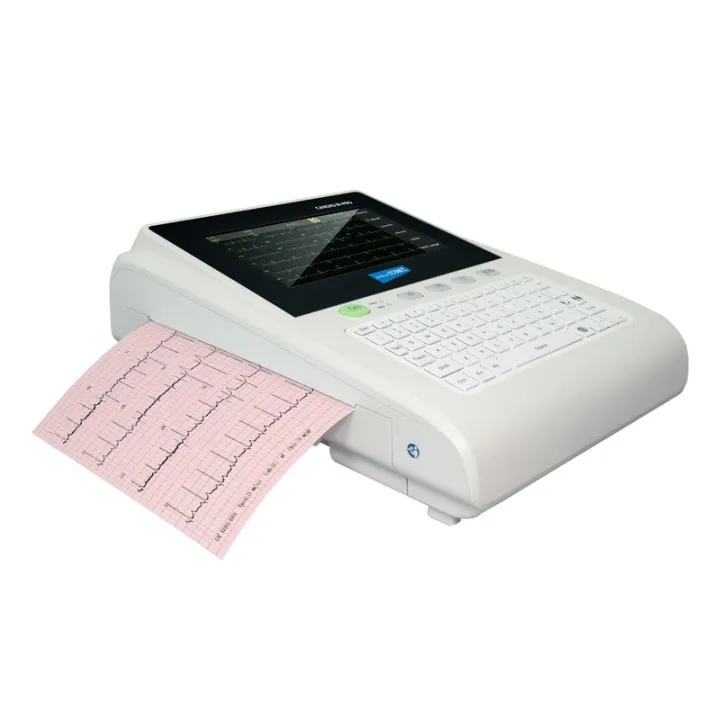

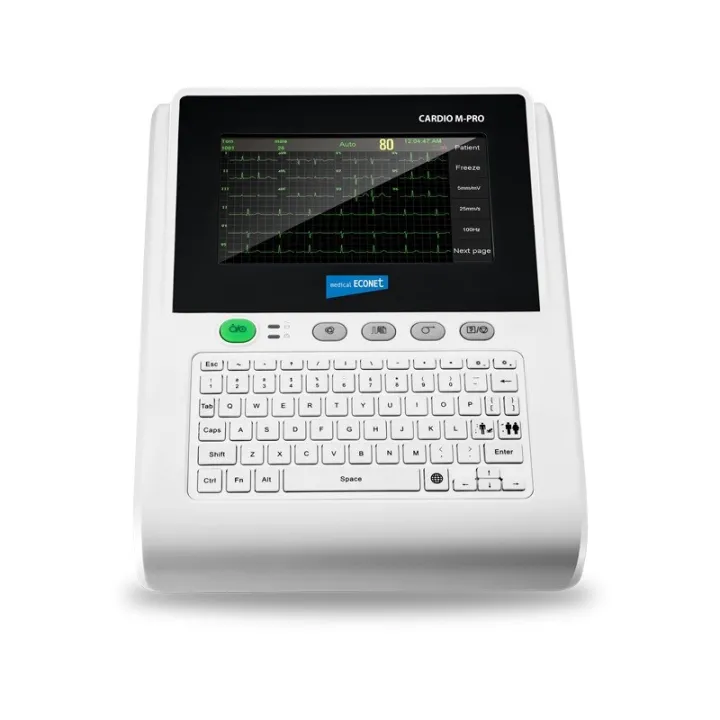

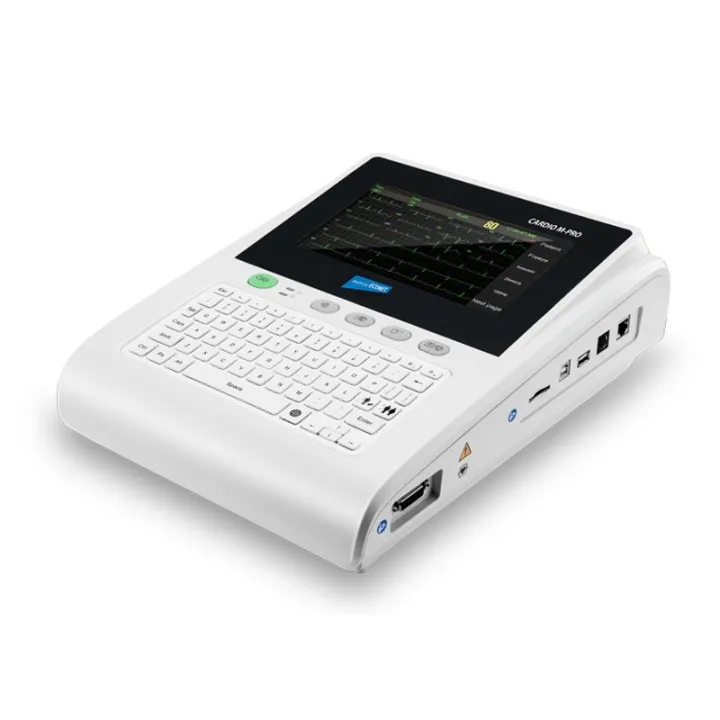

CARDIO M-PRO Intelligent 12-lead ECG with touchscreen
CARDIO M-PRO Intelligent 12-lead ECG with touchscreen
CARDIO M-PRO Intelligent 12-lead ECG with touchscreen

CARDIO M-PRO Intelligent 12-lead ECG with touchscreen

medical ECONET Germany
€1,379.00
Tax excluded

Intelligent 12-lead ECG with touchscreen

12, 6 and 3-channel resting ECG

8” LCD color touch screen

All 12 channels can be written out one below the other or in packages (2x6, 3x4)

Clear, high printout in DIN A4 format

Printout of rhythm derivation for 3- and 6-channel settings

Manual ECG monitoring or 10-second ECG memory for interpretation

Automatic interpretation recommendation

The interpretation function distinguishes between 25 diagnostic cases based on the Minnesota protocol

ready to ship in 1-2 weeks
Share

Technical specifications:

  • Dimensions: 360 x 276 x 130 mm (WxHxD) Approx. 4.2 kg
  • Screen: 800 x 480 pixels
  • Measurement parameters: HR, PR interval, QRS complex duration, QT/QTC, electrical R/QRS/T axis, RV5/SVI amplitude
  • Battery: Lithium-ion - When fully charged, approx. 5 hours of runtime or up to 500 printed ECG reports in automatic mode
  • Connection: 1x SD card / 2x USB / 1x RJ-45 (network)

Scope of delivery:

  • ECG patient cable
  • Power cable
  • 6x chest wall suction electrodes
  • 4x limb clip electrodes
  • Operating instructions
  • Paper
  • ECG gel

  • Brand
  • Reference
    30.11-2300

CARDIO M-PRO Specifications

CARDIO M-PRO Specifications

Download (667.16KB)
Authorised retailer
All items direct from the manufacturer
Fast delivery
We ship via DHL Standard and Express
Secure payment options
100% buyer protection, 2–5-year warranty
