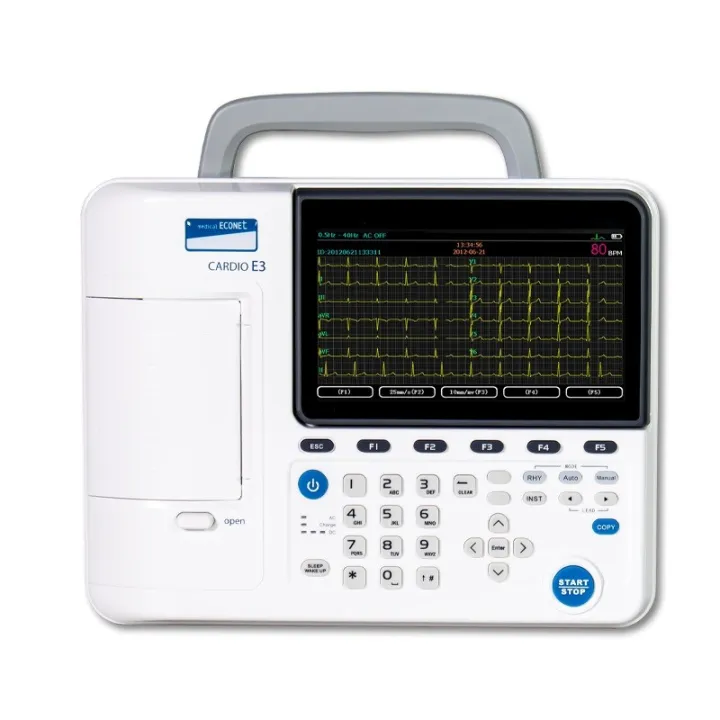

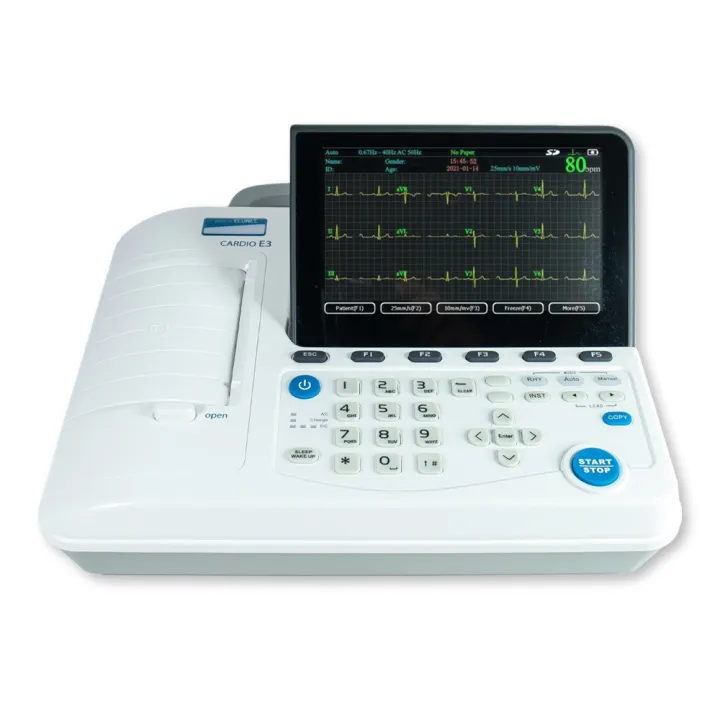

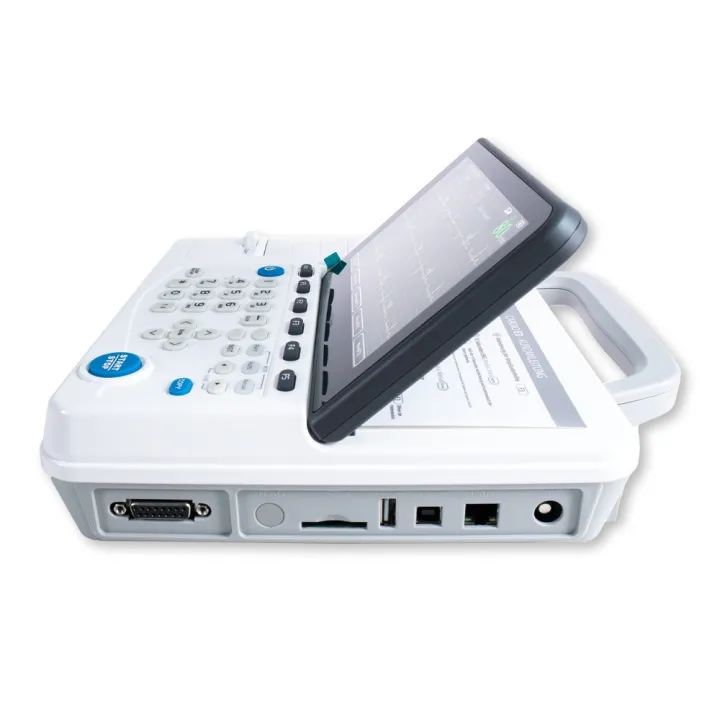

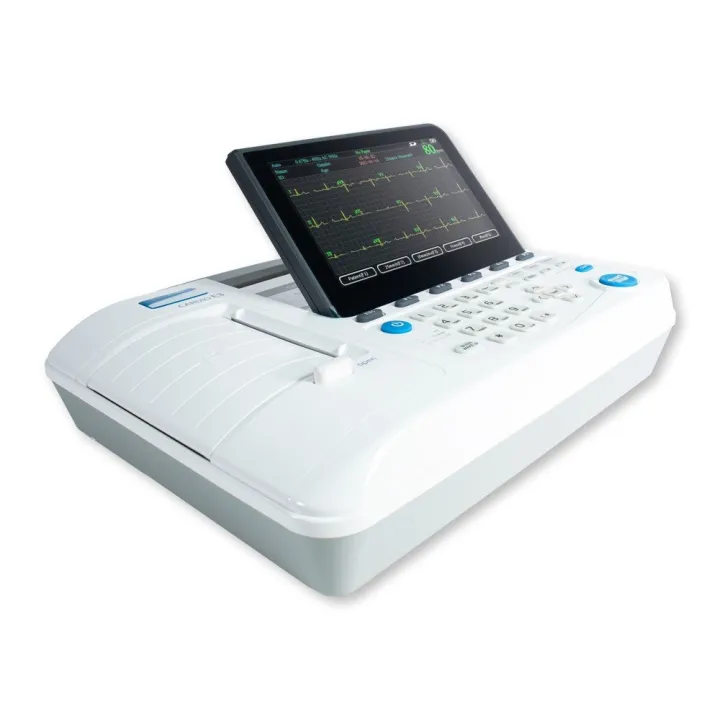

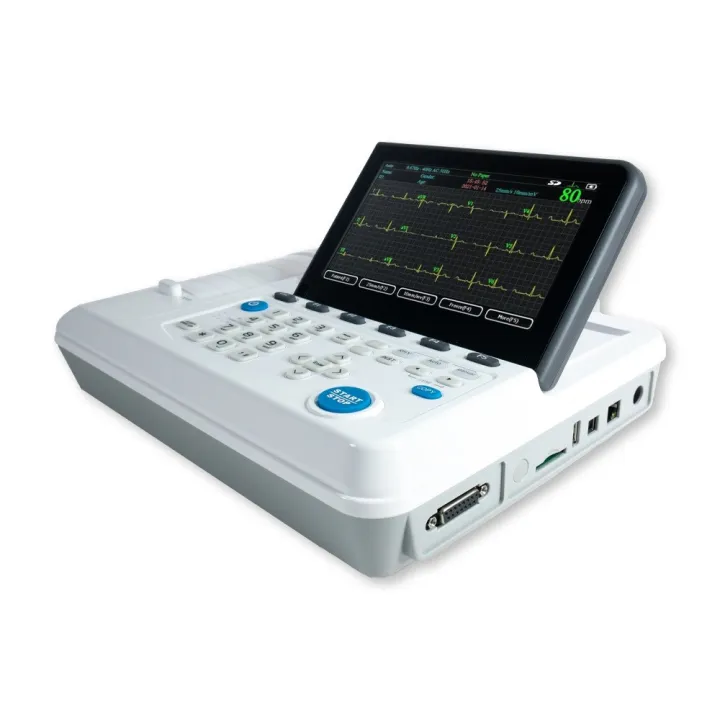

CARDIO E3 ECG with integrated printer

The CARDIO E3 is a powerful 12-channel ECG system that combines maximum precision with flexible handling. Thanks to simultaneous 12-lead recording and an integrated automatic interpretation program, the device delivers reliable measurement results and provides you with efficient support in your diagnostics.

With a sampling frequency of 1000 Hz—and even 10,000 Hz with pacemaker detection—the CARDIO E3 enables accurate recording of all signals. Various filter options, such as an adjustable muscle tremor filter (30/40 Hz), a mains filter for suppressing 50/60 Hz interference, and an individually adjustable baseline filter ensure interference-free and clear ECG display.

The recording speed is flexibly adjustable (5/10/25/50 mm/s), as is the sensitivity (2.5/5/10/20 mm/mV). Both automatic operation and manual control are available, depending on your application requirements.

The alphanumeric control panel allows you to control all functions of the CARDIO E3 easily and conveniently.

The high-resolution thermal printing process ensures razor-sharp printouts of your ECG reports. You can save the data directly to an SD card, a USB stick, or via the integrated LAN network—whatever suits your practice requirements. The built-in rechargeable lithium battery and mains operation (100–240 V, 50/60 Hz) allow for flexible use.

With compact dimensions of 310 x 244 x 65 mm and a weight of only 2.25 kg, the CARDIO E3 is both mobile and space-saving. The ECG accessory set included in the scope of delivery makes the device ready for immediate use. Reports can be transferred from the CARDIO E3 to a PC using the USB cable supplied.

The CARDIO E3 – your reliable partner for precise ECG diagnostics and efficient work processes in everyday practice.

Scope of delivery:

• Paper
• ECG patient cable
• Power cable
• Chest wall suction electrodes
• Extremity clip electrodes
• ECG gel
• Operating instructions
