Practical application set
In addition to the standard Brix and refractive index scales, six further scales are pre-installed specifically for industrial/vehicle applications. This allows you to conveniently carry out various measurements, e.g. on battery fluid or wiper fluid, with just one device. You can easily change the scale by pressing a button.
NEW: The free OXR-BASIC software for performing measurements and for saving and exporting measurement results is available in the download area

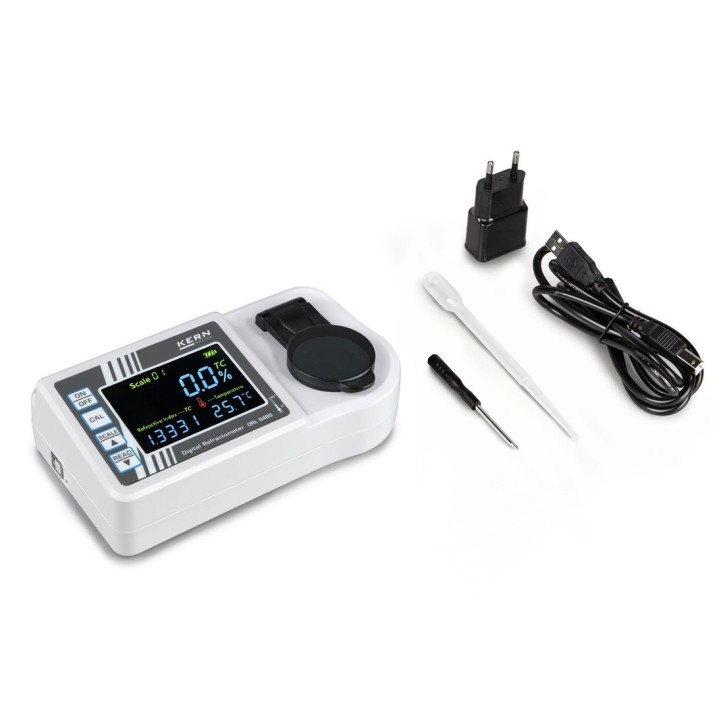

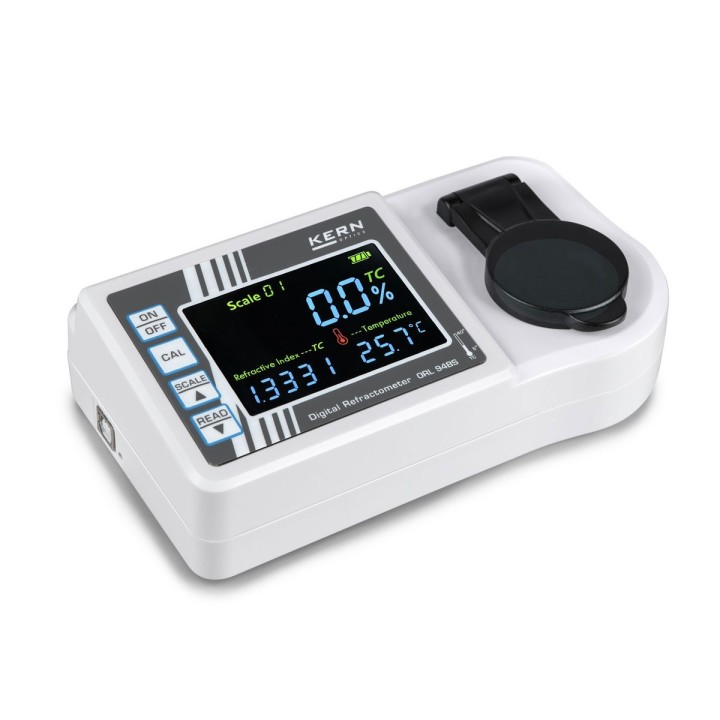

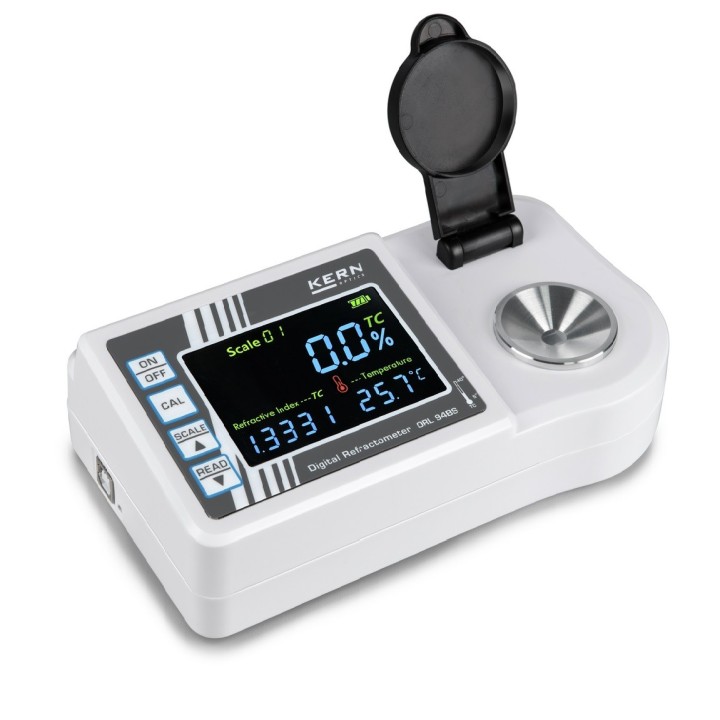

The KERN ORL 94IN is a accurate, universal and maintenance-free digital desktop refractometer
Other key features are the extra-large measuring range and a high degree of accuracy
With their handy design, they are ideal for convenient and rapid everyday use
The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
The integrated automatic temperature compensation (ATC), avoids the manual conversion of the measurement. This allows a quick and efficient usage of the instrument
A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
Mean value measurements possible
Technical Data
| Refractometer type |
Desktop refractometer |
| Scale - Display type |
Digital |
| Area of application |
Automotive / Industry |
| Measuring method |
Total reflection |
| Measurement temperature (°C) |
0 °C – 40 °C |
| Automatic temperature compensation (ATC) |
|
| IP protection - complete device |
IP43 |
| Dimension (W×D×H) |
180×100×55 mm |
| Brix scale |
|
| Measuring range Brix |
0 % – 94 % |
| Readout Brix |
0,1 % |
| Scale for Refractive index |
|
| Measuring range refractive index |
1,3330 nD – 1,5290 nD |
| Readout refractive index |
0,0001 nD |
| Scale batterie fluid |
|
| Meausring range batterie fluid |
1,000 kg/l – 1,500 kg/l |
| Readout batterie fluid |
0,001 kg/l |
| Scale for ethylene glycol (%) |
|
| Measuring range ethylene glycol (%) |
0 % – 100 % |
| Readout ethylene glycol (%) |
0,1 % |
| Scale for ethylene glycol (°C) |
|
| Measuring range ethylene glycol (°C) |
-50 °C – 0 °C |
| Readout ethylene glycol (°C) |
0,1 °C |
| Scale propylene glycol (%) |
|
| Measuring range propylene glycol (%) |
0 % – 100 % |
| Readout propylene glycol (%) |
0,1 % |
| Scale propylene glycol (°C) |
|
| Measuring range propylene glycol (°C) |
-60 °C – 0 °C |
| Readout propylene glycol (°C) |
0,1 °C |
| Scale windshield washer fluid |
|
| Measuring range windshield washer fluid |
-60 °C – 0 °C |
| Readout windshield washer fluid |
0,1 °C |
| System requirements CPU |
Intel Core i3 or higher, AMD Ryzen 5 or higher |
| System requirements clock speeds |
2.8 GHz |
