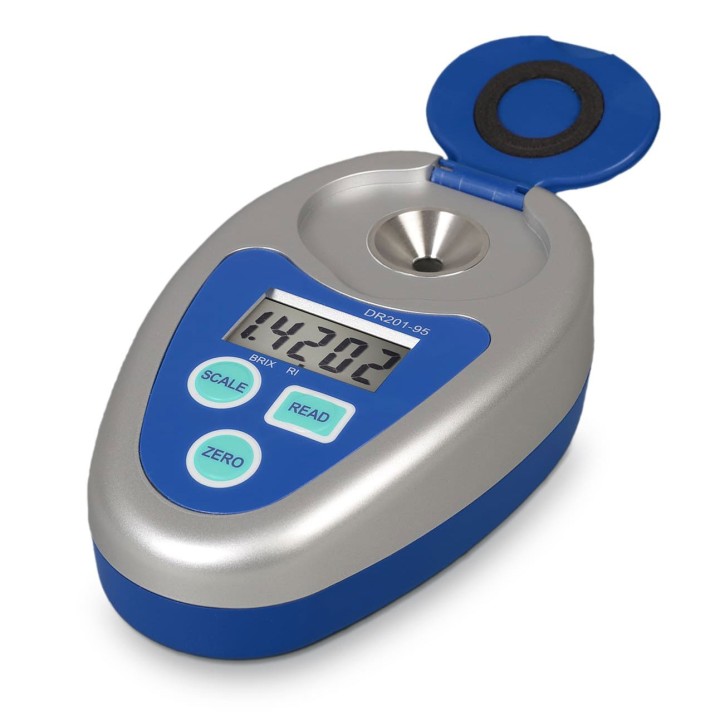

KRÜSS DR201-95 Digital handheld refractometer images
KRÜSS DR201-95 Digital handheld refractometer
The KRÜSS DR201-95 is a compact, mobile and splash-proof digital handheld refractometer. It is used to measure the refractive index (nD) and the sugar content in % (%Brix) of liquid and viscous samples. Thanks to the automatic temperature compensation for the BRIX scale, a reproducible measurement can be achieved even under changing ambient conditions. The automatic temperature compensation for the BRIX scale supports the user when measuring sugary drinks and confectionery. The device is splash-proof and meets the IP64 standard. The DR201-95 is used in the food and beverage industry, in pharmacies, laboratories and testing laboratories as well as in research and teaching.
Basic functions
- Measurement range: nD 1.3330-1.5318 and 0-95%Brix
- Mobile automatic measurement at the touch of a button
- High measurement accuracy: nD ±0.0003 and ±0.2 %Brix
- Reproducible measurement results that are not dependent on the user’s interpretation.
- Automatic temperature compensation (BRIX scale)
- Swift filling and cleaning
- With high-quality, fully chrome-plated measurement tray
- Robust housing and low device weight
Technical data DR201-95
| Specification | Digital handheld refractometers DR201-95 model |
|---|---|
| Measurement range | nD 1.3330-1.5318 0-95 %Brix |
| Measurement accuracy 1) | nD ±0.0003 ±0.2 %Brix |
| Resolution | nD 0.0001 0.1 %Brix |
| Measurement period 2) | approx. 1 second |
| Minimum sample volume | 0.3 ml |
| Temperature measurement accuracy | ±0.5 °C |
| Temperature measurement resolution | 0,1°C |
| Scales | Refractive index (nD), concentration of sucrose (%Brix) |
| Adjustment | Via membrane keypad |
| Additional features | Temperature compensation for 10-40 °C 3) IP code IP64 |
| Parts in contact with the sample | Optical Flint glass (SF4), full chromed surface |
| Operation | Membrane keypad |
| Dimensions (W x H x D) | 130 mm x 80 mm x 40 mm |
| Weight | 180 g |
| Operating voltage | 1.5 V (1xAAA battery) |
¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)
²) After temperature equalization
³) Temperature compensation only with %Brix scale
