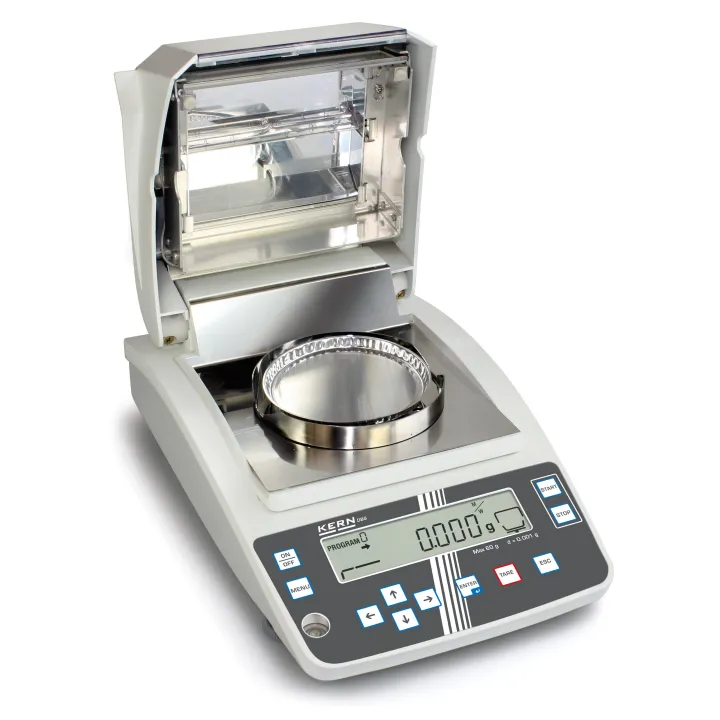

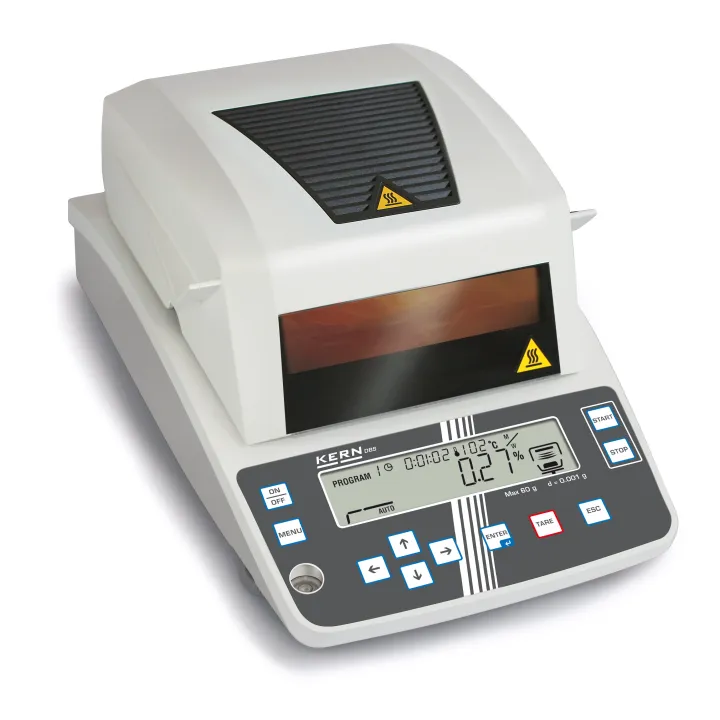

KERN DBS 60-3 Moisture analyser

• Backlit LCD graphic display with digit height 15 mm
• Drying process active
• Previous drying time
• Current temperature
• Unit of the shown result, e.g. moisture
• Current moisture content in %
• Active heating profile
• Halogen quartz glass heater 400 W Observation window above the sample, useful during initial setting
• Internal memory for automatic run of 10 drying programs and 100 drying processes already executed
• The last value measured remains on the display until it is replaced by a new measurement
• Sample description for up to 99 samples, 2 digits, freely programmable, and is printed in the measuring protocol
• Date and time display as standard
• 10 sample plates included Protective working cover included with delivery
• Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

KERN DBS 60-3 Moisture analyser

Technical data

• Readability [d]: 60 g
• Weighing capacity [Max]: 0,001 g/0,01 %
• Reproducibility weight of sample 2 g: 0,15%
• Reproducibility, weight of sample 10 g: 0,02%
• Display after drying
• Moisture [%] = Moisture content (M) from wet weight (W): 0–100 %
• Dry content [%] = 100–0 %
• Dry weight (D) from W 100–0 %
• ATRO [%] [(W-D) : D] · 100%: 0–999 %
• Moisture content (M): Absolute value in [g]
• Temperature range: 50 °C–200 °C in steps up to 1 °C
• Drying modes: Standard drying, Drying in levels, Gentle drying, Rapid drying
• Switch-off criteria
  • Automatic unrestricted switch-off (Selectable loss in weight 0,01% – 0,1% in 30 s)
  • Time controlled switch-off (1 min – 12 h)
  • Manual switch-off at the press of a button
• Recall of measurement/ Log output: Interval can be set from 1 s – 10 min
• Overall dimensions W×D×H: 204×336×167 mm
• Net weight: approx. 4,6 kg
