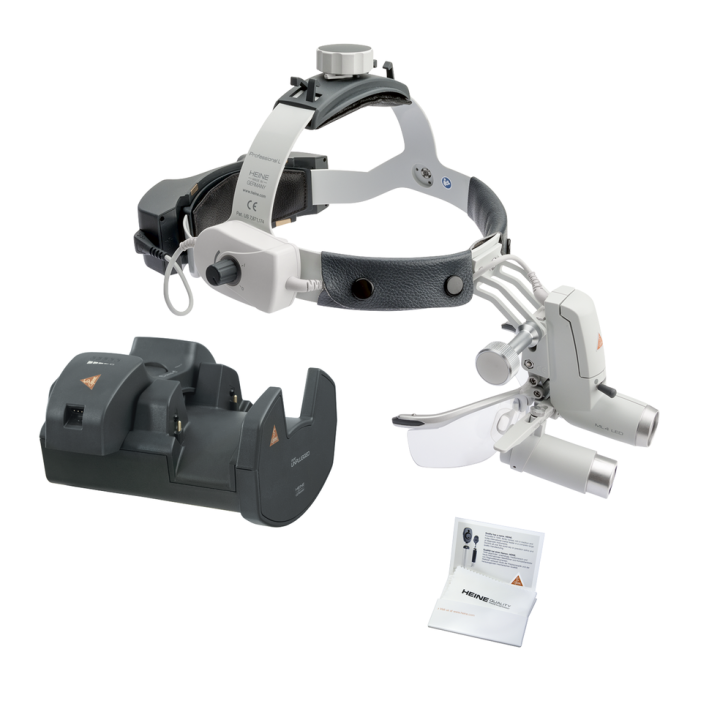

HEINE ML4 LED Kit with loupes HRP, S-GUARD, EN 50 Wall Transformer
HEINE ML4 LED Kit with loupes HRP, S-GUARD, EN 50 Wall Transformer
Wall Transformer HEINE EN 50 UNPLUGGED
HEINE mPack UNPLUGGED

HEINE ML4 LED Kit with loupes HRP, S-GUARD, EN 50 Wall Transformer

HEINE
€4,002.00 (Save 10%)
€3,601.80
Tax excluded

The following Kit contain:

  • HEINE ML4 LED HeadLight
  • Binocular Loupes HEINE HRP with i-View
  • HEINE Professional L Headband with S-GUARD
  • Wall Transformer HEINE EN 50 UNPLUGGED
  • 2 x HEINE mPack UNPLUGGED
Working distance
in stock
Share

HEINE ML4 LED HeadLight

Ultra bright coaxial LED-HQ illumination

  • There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE Quality – or LEDHQ.
  • Adjustable illumination spot size: 30mm to 80mm spot size range (at 420mm working distance) to fit any examination situation.
  • Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
  • Stepless light intensity control. Optimal brightness setting prevents reflexes.
  • Flexibility. Flexible Power Source Options: 100% mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
  • Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
  • Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
  • Optional filters: Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical specification HEINE ML4 LED

  • Illumination typ. 90,000 lux*
  • Colour temperature typ. 5,500 kelvin
  • LED operating life typ. 50,000 hours
  • Spot adjustment 30 mm to 80 mm at 420 mm working distance
  • Angle of declination stepless and individually adjustable for every examination
  • Rheostat headband-mounted
  • Operating time typ. 8.5 hours with mPack and typ. 3.5 Hours with mPack UNPLUGGED of continuous ON time at full power

* Measured at a working distance of 180 mm from the light emission to the object.

Tips to choose the correct Binocular Loupe

HEINE HRP High Resolution Prismatic Binocular Loupes

with i-View loupe mount

  • Achromatic optics for crisp, bright images from edge-to-edge.
  • Lightweight (85 g).
  • Water-resistant.
  • Independent adjustment of left and right optics for perfect PD adjustment.
  • Highest magnification: Choice of 3.5 x, 4 x and 6 x.
  • i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband with S-GUARD

  • S-GUARD splash protection. Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.
  • Ergonomic nose pad for comfort during long procedures.
  • Fully-adjustable for height and width to fit any head.
  • Hygienic and comfortable leather cushions.
  • Optional clip-in correction frame for prescription lenses.

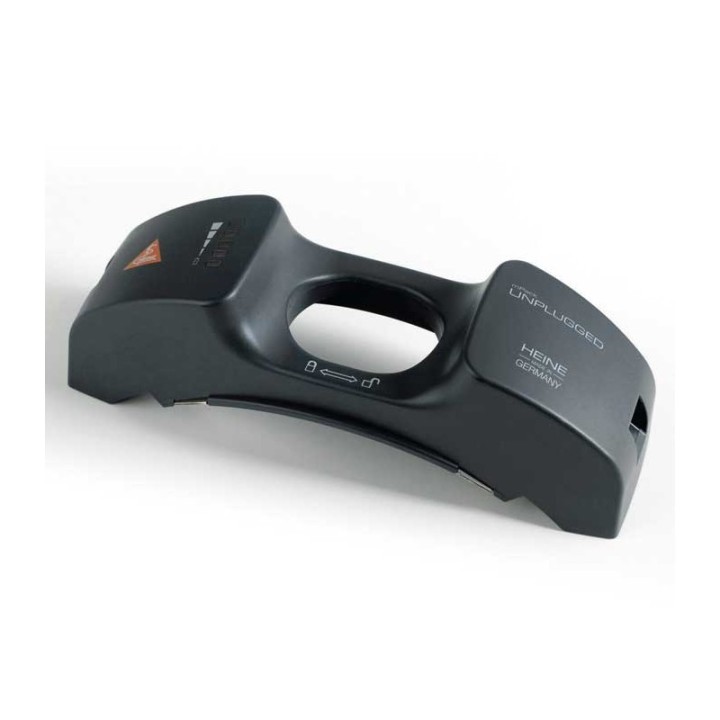

HEINE mPack UNPLUGGED

Headband-mounted rechargeable battery

  • Rechargeable battery for ML4 LED HeadLight UNPLUGGED (System voltage 6 V).
  • Lightweight with balanced weight distribution. High level of comfort.
  • Charge status indicator. Display of remaining operating time.
  • Can be recharged by wall- or plug-in transformer.
  • Direct operation possible while charging through the use of the mobile plug-in transformer.
  • Charging time: typ. 2 hours.
  • Operating time: typ. 3.5 hours for ML4 LED HeadLight
  • Intelligent charging system. Automatic changeover from operating to charging mode (in the wall unit).
  • Top safety standards. Integrated charge and performance checks during operation.
  • Lithium polymer technology. UL-compliant.
  • Registered Design.

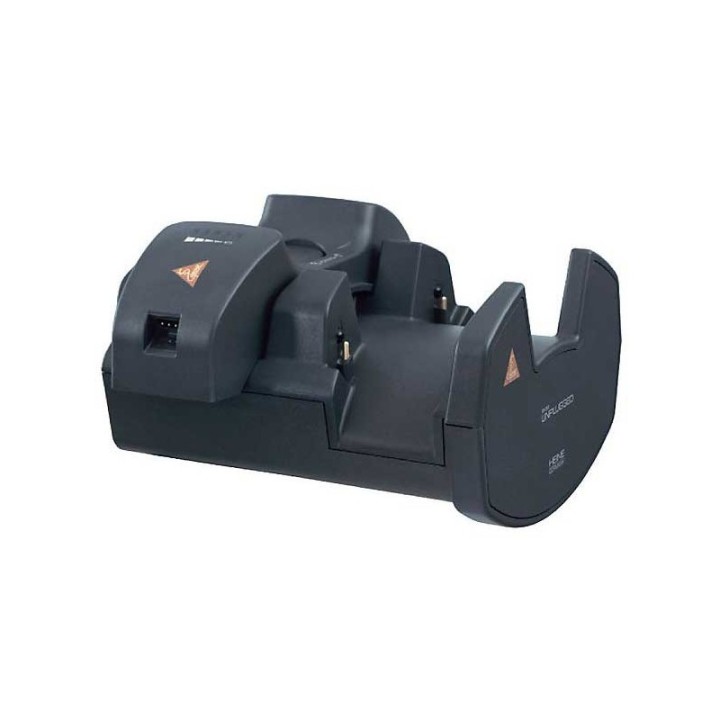

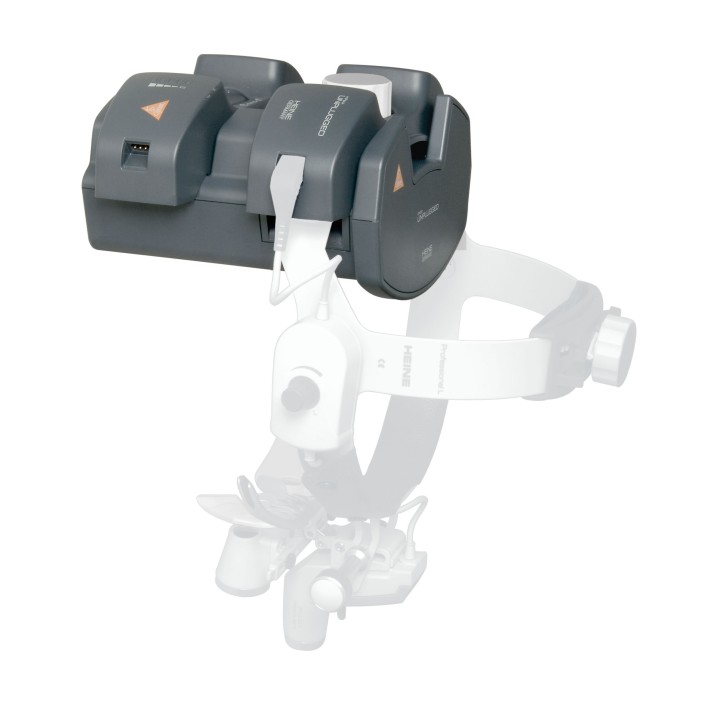

Wall Transformer HEINE EN 50 UNPLUGGED

Intelligent charger for mPack UNPLUGGED

  • Charger and wall-mount in one. The wall transformer serves as an instrument holder and a charger at the same time.
  • Intelligent charging system. The instrument automatically switches off and goes into charging mode when placed in wall transformer. It is impossible to overcharge the mPack UNPLUGGED; the process ends automatically when charging is completed.
  • Simultaneous charging. The charging system charges the battery on the headband as well as an additional single spare battery.
  • Compatible transformer (100 – 240 V). Multi-voltage power supply unit incl. 4 different mains adaptors.
  • Registered Design.
