HEINE ML4 LED HeadLight

• There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE Quality – or LEDHQ.
• Adjustable illumination spot size: 30mm to 80mm spot size range (at 420mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100% mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters: Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical specification HEINE ML4 LED

• Illumination typ. 90,000 lux*
• Colour temperature typ. 5,500 kelvin
• LED operating life typ. 50,000 hours
• Spot adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of declination stepless and individually adjustable for every examination
• Rheostat headband-mounted
• Operating time typ. 8.5 hours with mPack and typ. 3.5 Hours with mPack UNPLUGGED of continuous ON time at full power

* Measured at a working distance of 180 mm from the light emission to the object.

Power Sources ML4 LED

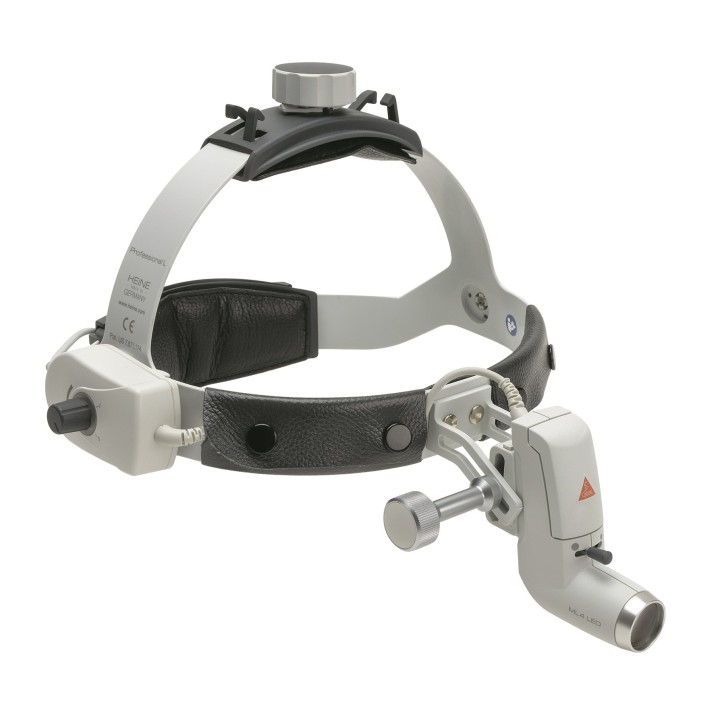

• ML4 LED HeadLight (without power source)

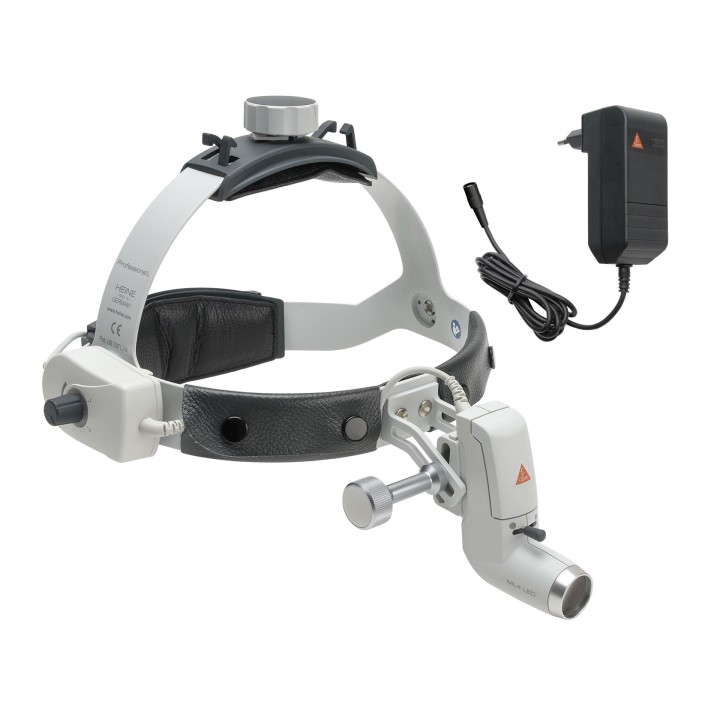

• ML4 LED HeadLight with plug-in transformer

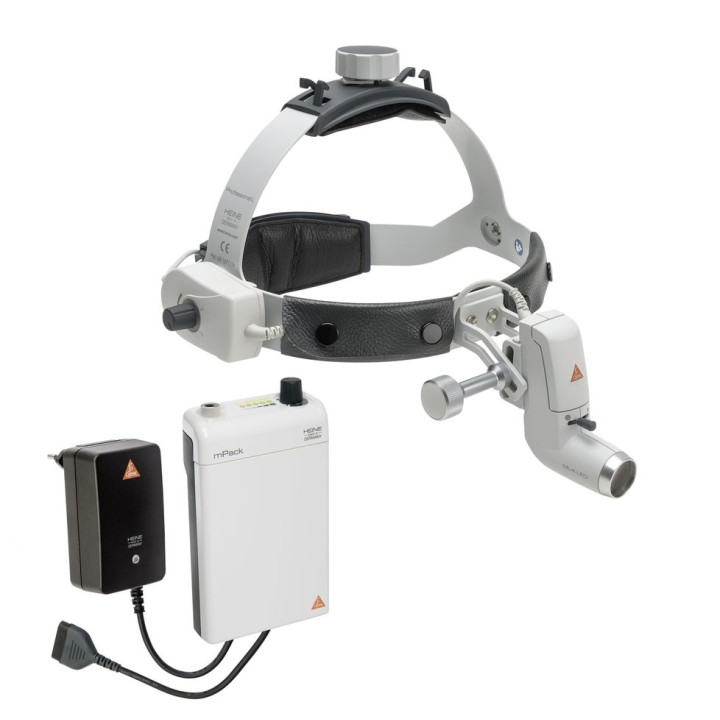

• ML4 LED HeadLight with mPack and plug-in transformer

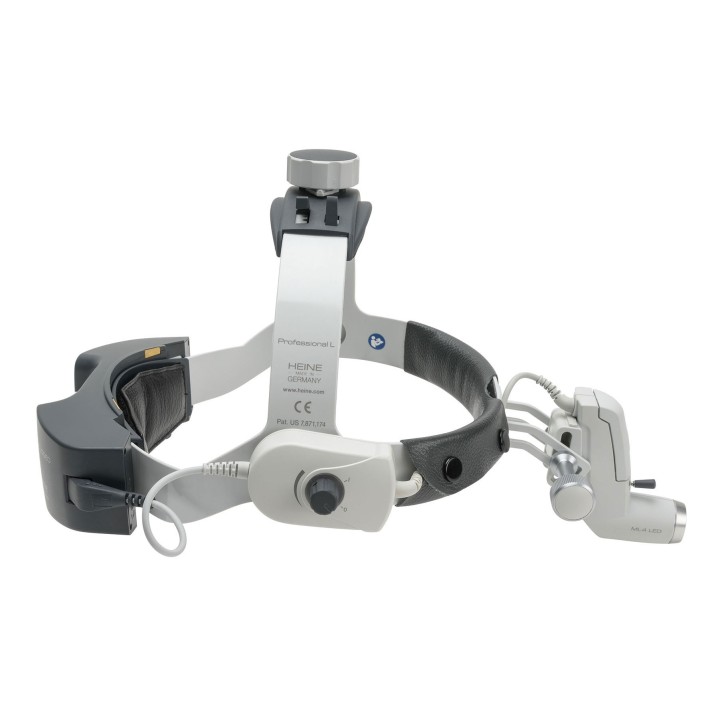

• ML4 LED HeadLight with mPack UNPLUGGED and plug-in transformer UNPLUGGED

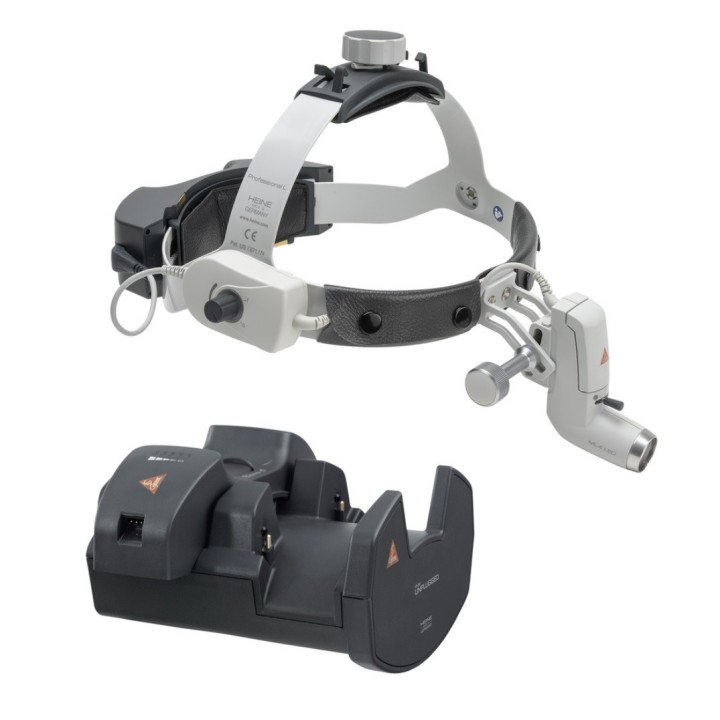

• ML4 LED HeadLight with wall mounted EN 50 UNPLUGGED charger and 2 x mPack UNPLUGGED
