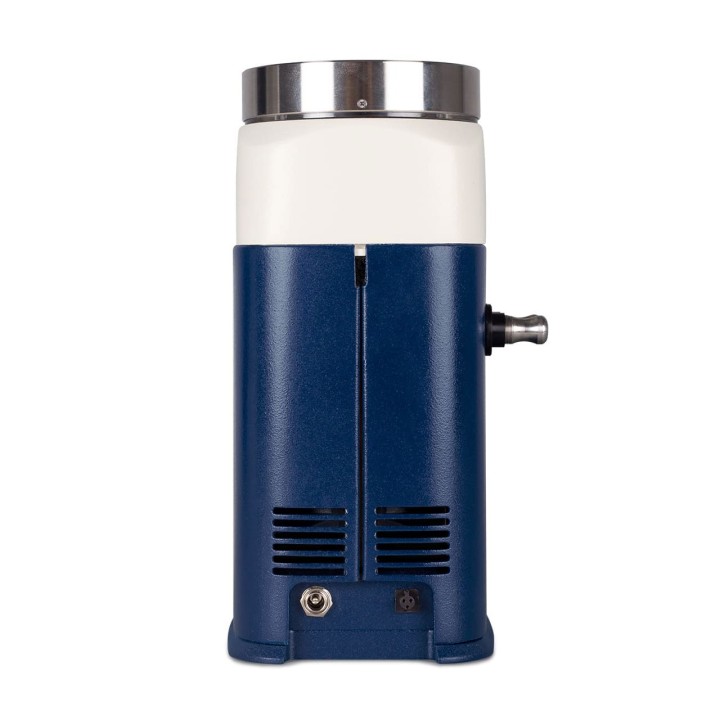

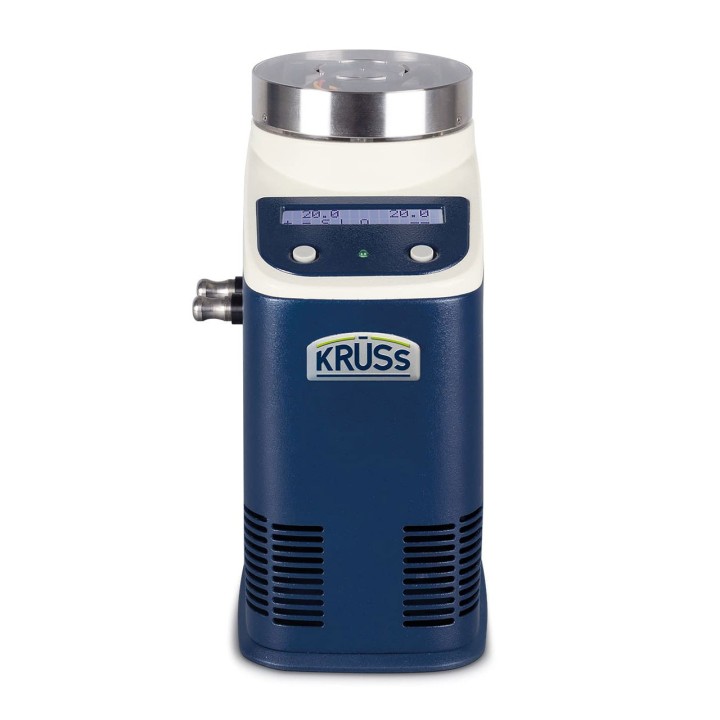

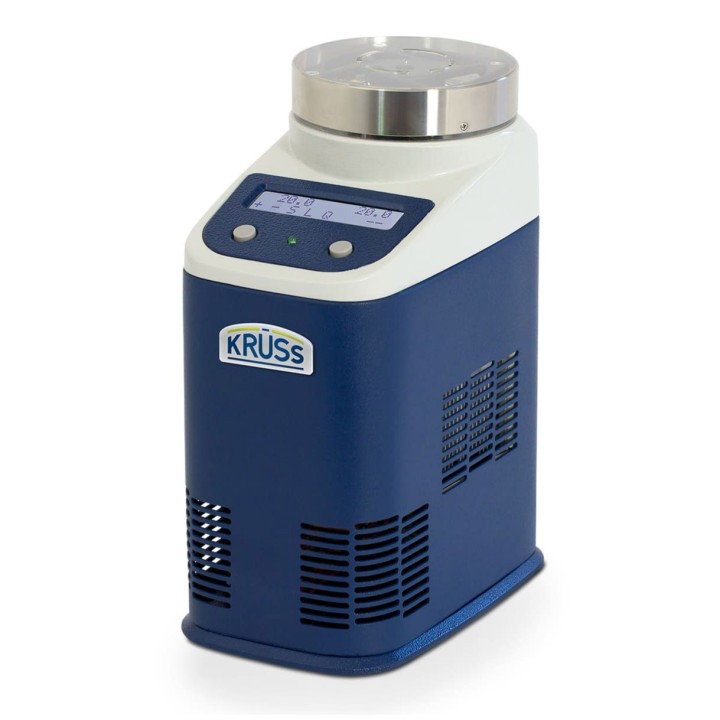

Circulation thermostat KRÜSS PT31
Price: €1,499.00
The PT31 circulation thermostat has functional and powerful features. The 1.5 kg lightweight device is perfect for when a for applications requiring a temperature range at a constant level. The proven Peltier technology enables process-reliable temperature control in the range from 8 °C to 35 °C. The accuracy of temperature control is ±0.2 °C.
- Temperature control using Peltier technology
- Temperature range from 8 °C to 35 °C
- Space-saving, sturdy design
- Suitable for operation with non-flammable liquids (water or water/glycol mixture)
- Bright, easy-to-read LCD matrix display
- Sophisticated, easily accessible operating elements
- Simple and plainly structured functions
Technical data KRÜSS PT31
| Specification | Circulation thermostat model PT31 |
|---|---|
| Temperature control range 1) | 8 °C – 35 °C |
| Accuracy of temp. control | ±0,2 °C |
| Ambient temperature range | 5 °C – 40 °C |
| Temperature control resolution | 0,1 °C |
| Heating capacity | 30W |
| Cooling capacity at 20 °C | 20W |
| Pump pressure | 20 mbar |
| Pump capacity | 20 l/h |
| Display type | LCD matrix display (2 lines) |
| IP code | IP21 |
| Class of protection (DIN 12876-1) | l; non-flammable liquids |
| Filling volume | 100 ml |
| Operation | Selection keys |
| Dimensions (W x H x D) | 108 mm x 199 mm x 145 mm |
| Weight | 1.5 kg (without mains adaptor and mains cable) |
| Operating voltage | 100 – 240 V AC, 50/60 Hz |
| Power consumption (heating / cooling) | 30 W / 70 W |
| Power consumption (max.) | 80 W |
¹) Limits of the temperature control range, can be reached at a suitable ambient temperature
