-10%

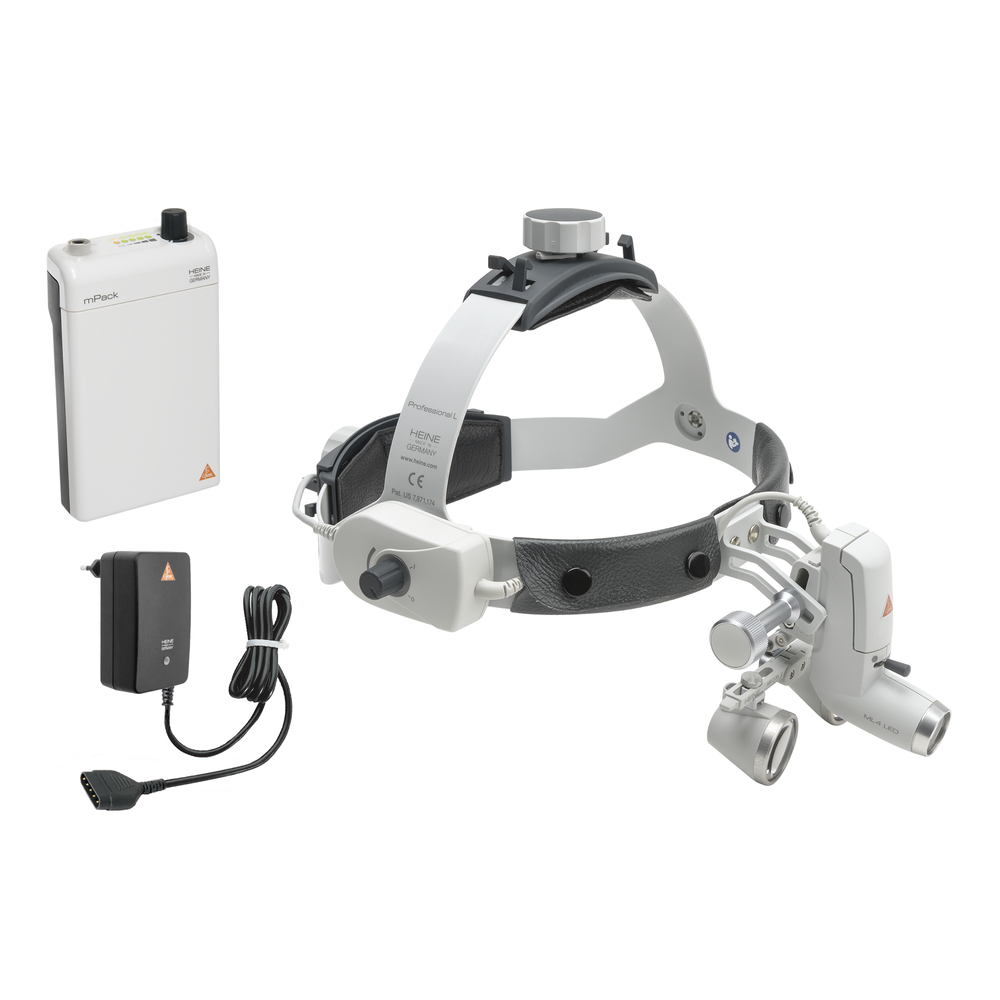

HEINE ML4 LED HeadLight Kit with loupes HR and mPack

Name: HEINE ML4 LED HeadLight Kit with loupes HR and mPack
Brand: HEINE
SKU: J-008.31.452G
Price: 2400.3 EUR
Availability: InStock

Brand : HEINE

Reference : J-008.31.452

The following Kit contain:

HEINE ML4 LED HeadLight
HEINE Binocular Loupes HR 2.5x with i-View
HEINE Professional L headband without S-GUARD (ideal for glasses wearers)
HEINE mPack with plug-in transformer

HEINE HR 2.5x Specifications

Working distance	Field of view	Depth of field
340 mm (13")	90 mm (3.5")	110 mm (4.3")
420 mm (16")	130 mm (5")	180 mm (7")
520 mm (20")	180 mm (7")	260 mm (10")

HEINE ML4 LED HeadLight

Ultra bright coaxial LED-HQ illumination

There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE Quality – or LEDHQ.
Adjustable illumination spot size: 30mm to 80mm spot size range (at 420mm working distance) to fit any examination situation.
Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
Stepless light intensity control. Optimal brightness setting prevents reflexes.
Flexibility. Flexible Power Source Options: 100% mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
Optional filters: Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical specification HEINE ML4 LED

Illumination typ. 90,000 lux*
Colour temperature typ. 5,500 kelvin
LED operating life typ. 50,000 hours
Spot adjustment 30 mm to 80 mm at 420 mm working distance
Angle of declination stepless and individually adjustable for every examination
Rheostat headband-mounted
Operating time typ. 8.5 hours with mPack and typ. 3.5 Hours with mPack UNPLUGGED of continuous ON time at full power

* Measured at a working distance of 180 mm from the light emission to the object.

Tips to choose the correct Binocular Loupe

HEINE HR 2.5x High Resolution Binocular Loupes

with i-View loupe mount

Achromatic optics for crisp, bright images with colour-correction.
Lightweight (51 g).
Water-resistant.
Independent adjustment of left and right optics for perfect PD adjustment.
High magnification with a large field of view and excellent depth of field.
i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband without S-GUARD

Ergonomic nose pad for comfort during long procedures.
Fully-adjustable for height and width to fit any head.
Hygienic and comfortable leather cushions
ideal for glasses wearers

HEINE mPack

Portable Power Pack for and ML4 HeadLight

Freedom from cables that tie the user to desk, wall or static power supplies.
Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
Fast Charge. Charges to full capacity in typ. 2 hours.
Charge status indicator. Always lets you know how much operating charge you have left.
Operating time: typ. 8.5 hours for HEINE ML4 LED HeadLight
Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
Can also be used as mains power supply even while in “charge” mode.
Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.

Reference : J-008.31.452

Hurry! only 5 items left in stock.
