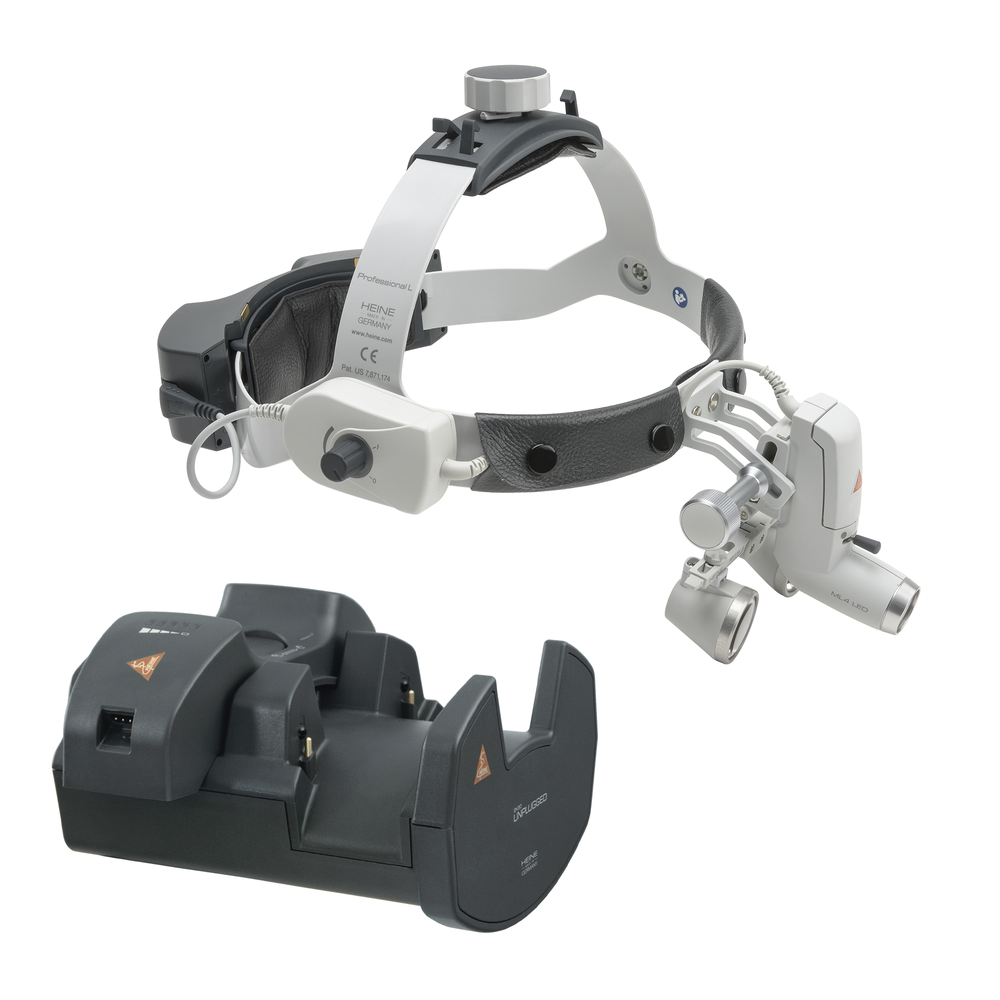

HEINE ML4 LED HeadLight Kit 6c with Binocular Loupes HR 2.5x/340

• LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 5,500 K, Colour Rendering Index (CRI) > 90, exceptional colour rendering.
• Adjustable illumination spot size: 30 mm to 80 mm spot size range (at 420 mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100 % mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters. Polarisation Filter P 2 improves contrast and yellow filter reduces blue light.

Technical Specification

• Illumination Typ. 90,000 Lux (measured at a working distance of 180 mm from the light emission to the object)
• Colour Temperature Typ. 5,500 Kelvin
• LED Operating Life Typ. 50,000 hours
• Spot Adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of Declination Stepless and individually adjustable for every examination
• Rheostat Headband-mounted
• Operating Time Typ. 8.5 hours with mPack and typ. 3.5 hours with mPack UNPLUGGED of continuous ON time at full power

How to choose the correct Loupe

HEINE HR 2.5x High Resolution Binocular Loupes

High resolution. Crisp image. Various magnifications.

Your optimal loupe is as individual as your work. Experience the difference of getting less tired - even during long procedures.

• Crisp, high-resolution image
• Large field of view
• Lightweight
• Multi-coated Achromatic Optics

HEINE Professional L Headband without S-GUARD

• Ergonomic nose pad for comfort during long procedures.
• Fully-adjustable for height and width to fit any head.
• Hygienic and comfortable leather cushions.

HEINE i-View for ML4 LED HeadLight

Provides any angle of view and flips up the optics independently of the illumination beam.

HEINE mPack UNPLUGGED

Headband-mounted rechargeable battery

• Rechargeable battery for HEINE ML4 LED HeadLight UNPLUGGED (System voltage 6 V).
• Lightweight with balanced weight distribution. High level of comfort.
• Charge status indicator. Display of remaining operating time.
• Can be recharged by wall- or plug-in transformer.
• Direct operation possible while charging through the use of the mobile plug-in transformer.
• Charging time: typ. 2 hours.
• Operating time: typ. 3.5 hours for HEINE ML4 LED HeadLight
• Intelligent charging system. Automatic changeover from operating to charging mode (in the wall unit).
• Top safety standards. Integrated charge and performance checks during operation.
• Lithium polymer technology. UL-compliant.
• Registered Design.

Wall Transformer HEINE EN 50 UNPLUGGED

Intelligent charger for mPack UNPLUGGED

• Charger and wall-mount in one. The wall transformer serves as an instrument holder and a charger at the same time.
• Intelligent charging system. The instrument automatically switches off and goes into charging mode when placed in wall transformer. It is impossible to overcharge the mPack UNPLUGGED; the process ends automatically when charging is completed.
• Simultaneous charging. The charging system charges the battery on the headband as well as an additional single spare battery.
• Compatible transformer (100 – 240 V). Multi-voltage power supply unit incl. 4 different mains adaptors.
• Registered Design.
