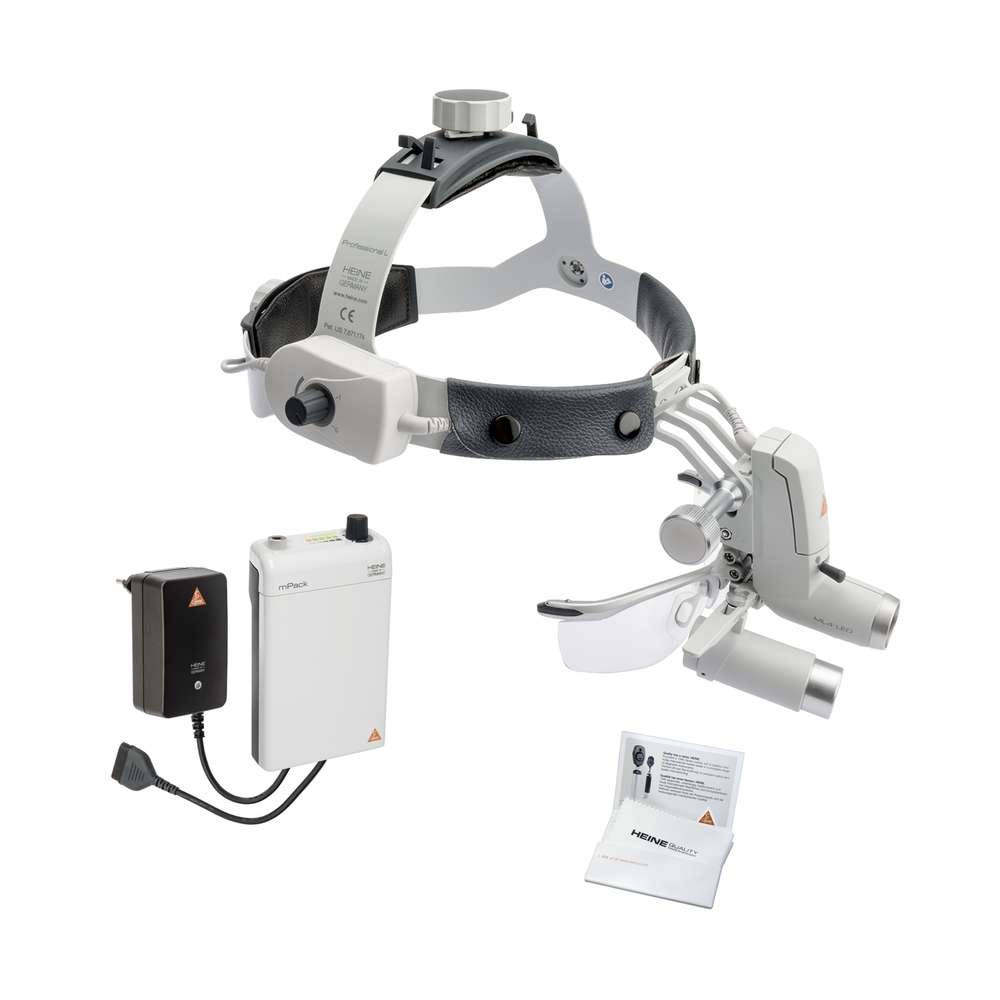

HEINE ML4 LED HeadLight Kit HRP with S-GUARD and mPack

HEINE ML4 LED HeadLight Kit HRP with S-GUARD and mPack

HEINE
J-008.31.442

The following Kit contain:

  • HEINE ML4 LED HeadLight
  • HEINE HRP Binocular Loupes with i-View
  • HEINE Professional L Headband with S-GUARD
  • HEINE mPack with plug-in transformer
Working distance : HRP 3.5x / 420 mm
check In Stock
€2,824.20
€3,138.00
Save 10%
plus shipping
Quantity

5-7 days

HEINE ML4 LED HeadLight

Ultra bright coaxial LED-HQ illumination

  • There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE Quality – or LEDHQ.
  • Adjustable illumination spot size: 30mm to 80mm spot size range (at 420mm working distance) to fit any examination situation.
  • Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
  • Stepless light intensity control. Optimal brightness setting prevents reflexes.
  • Flexibility. Flexible Power Source Options: 100% mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
  • Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
  • Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
  • Optional filters: Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical specification HEINE ML4 LED

  • Illumination typ. 90,000 lux*
  • Colour temperature typ. 5,500 kelvin
  • LED operating life typ. 50,000 hours
  • Spot adjustment 30 mm to 80 mm at 420 mm working distance
  • Angle of declination stepless and individually adjustable for every examination
  • Rheostat headband-mounted
  • Operating time typ. 8.5 hours with mPack and typ. 3.5 Hours with mPack UNPLUGGED of continuous ON time at full power

* Measured at a working distance of 180 mm from the light emission to the object.

Tips to choose the correct Binocular Loupe

HEINE HRP High Resolution Prismatic Binocular Loupes

with i-View loupe mount

  • Achromatic optics for crisp, bright images from edge-to-edge.
  • Lightweight (85 g).
  • Water-resistant.
  • Independent adjustment of left and right optics for perfect PD adjustment.
  • Highest magnification: Choice of 3.5 x, 4 x and 6 x.
  • i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband with S-GUARD

  • S-GUARD splash protection. Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.
  • Ergonomic nose pad for comfort during long procedures.
  • Fully-adjustable for height and width to fit any head.
  • Hygienic and comfortable leather cushions.
  • Optional clip-in correction frame for prescription lenses.

HEINE mPack

Portable Power Pack for HEINE ML4 LED HeadLight

  • Freedom from cables that tie the user to desk, wall or static power supplies.
  • Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
  • Fast Charge. Charges to full capacity in typ. 2 hours.
  • Charge status indicator. Always lets you know how much operating charge you have left.
  • Operating time: typ. 8.5 hours for HEINE ML4 LED HeadLight
  • Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
  • Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
  • Can also be used as mains power supply even while in “charge” mode.
  • Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
  • Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
  • 100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.
