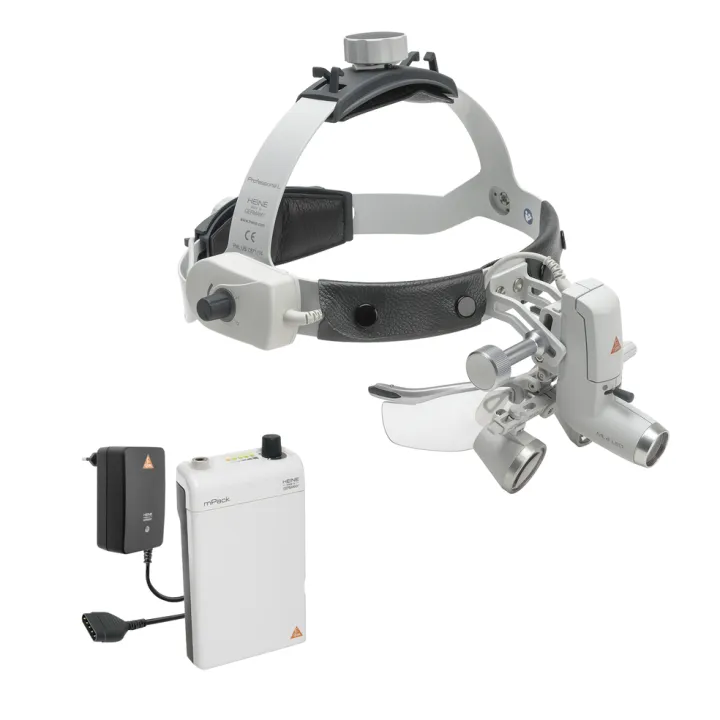

HEINE ML4 LED HeadLight Kit HR with S-GUARD and mPack

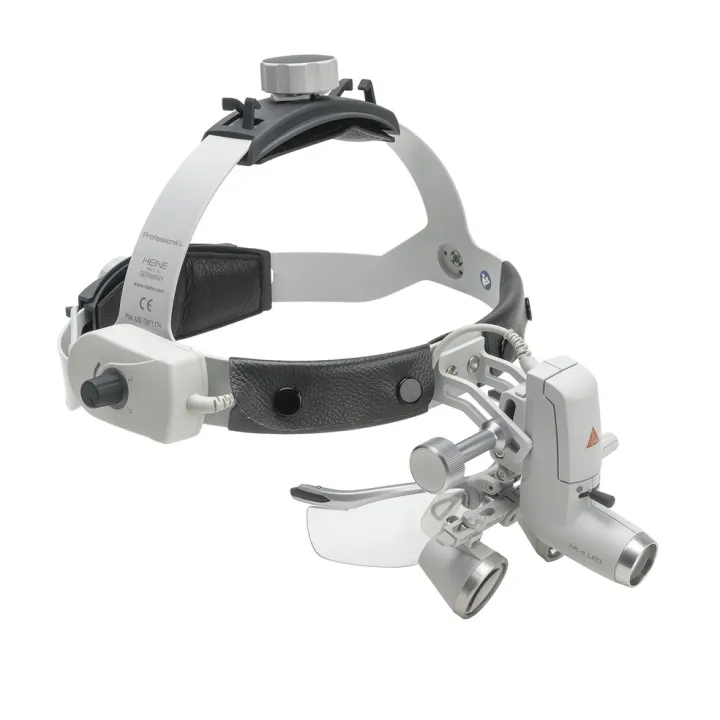

HEINE ML4 LED HeadLight

Ultra bright coaxial LED-HQ illumination

• There’s LED. And there’s LEDHQ. HEINE has set a new standard which maintains that only the best is good enough, from the selection of materials to processing, from light intensity to dimmability, and from thermal management to a colour rendering index as high as possible. That’s what we call LED in HEINE Quality – or LEDHQ.
• Adjustable illumination spot size: 30mm to 80mm spot size range (at 420mm working distance) to fit any examination situation.
• Bright and homogenous illumination. Absolutely bright light spot that is uniform from edge-to-edge for the perfect illumination in all examination situations.
• Stepless light intensity control. Optimal brightness setting prevents reflexes.
• Flexibility. Flexible Power Source Options: 100% mobility with a choice of cable-free mPack UNPLUGGED head-worn battery or mPack belt-worn battery pack.
• Coaxial illumination. Coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
• Comfortable and secure fit. The Professional L headband has multiple adjustment points and soft padding for comfort and stability – even during long examinations.
• Optional filters: Polarisation Filter P2 improves contrast and yellow filter reduces blue light.

Technical specification HEINE ML4 LED

• Illumination typ. 90,000 lux*
• Colour temperature typ. 5,500 kelvin
• LED operating life typ. 50,000 hours
• Spot adjustment 30 mm to 80 mm at 420 mm working distance
• Angle of declination stepless and individually adjustable for every examination
• Rheostat headband-mounted
• Operating time typ. 8.5 hours with mPack and typ. 3.5 Hours with mPack UNPLUGGED of continuous ON time at full power

* Measured at a working distance of 180 mm from the light emission to the object.

Tips to choose the correct Binocular Loupe

HEINE HR 2.5 x Binocular Loupes

with i-View loupe mount

• Achromatic optics for crisp, bright images with colour-correction.
• Lightweight (51 g).
• Water-resistant.
• Independent adjustment of left and right optics for perfect PD adjustment.
• High magnification with a large field of view and excellent depth of field.
• i-View loupe mount provides any angle of view and flips up the optics independently

HEINE Professional L Headband with S-GUARD

• S-GUARD splash protection. Rapid and simple symmetric adjustment of binocular loupes with splash protection by protective lenses.
• Ergonomic nose pad for comfort during long procedures.
• Fully-adjustable for height and width to fit any head.
• Hygienic and comfortable leather cushions.
• Optional clip-in correction frame for prescription lenses.

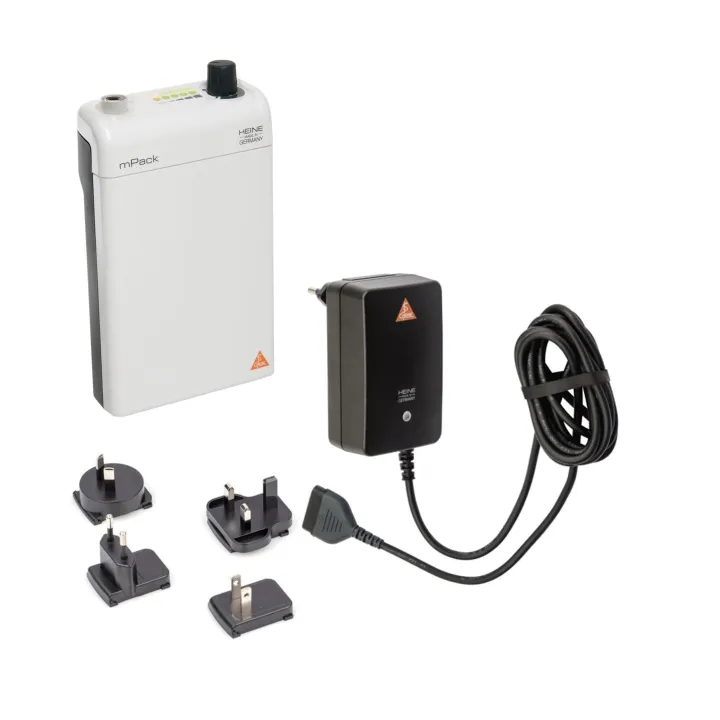

HEINE mPack

Portable Power Pack for HEINE ML4 LED HeadLight

• Freedom from cables that tie the user to desk, wall or static power supplies.
• Triple the Capacity with Li-ion Technology. Compared with current NiCd systems. When fully charged at least 3 x the capacity of conventional NiCd systems. More than double of other Li-ion systems. No memory effect.
• Fast Charge. Charges to full capacity in typ. 2 hours.
• Charge status indicator. Always lets you know how much operating charge you have left.
• Operating time: typ. 8.5 hours for HEINE ML4 LED HeadLight
• Flexible Charging Options. Charge in the EN 50 Charger base station, or with mobile plug-in transformer.
• Intelligent. Automatically switches to “charge” mode when inserted in EN 50.
• Can also be used as mains power supply even while in “charge” mode.
• Automatic remote power adjustment for compatibility with all HEINE 6 V and selected LED instruments.
• Stepless light intensity control 0.5 – 100 %. Optimum brightness setting prevents reflexes.
• 100 – 240 V Compatible Transformer incl. 4 plugs for world wide compatibility.
